Unbound – OpenWRT

LuCI Web Interface.

Package	Version	Package	Version
unbound-anchor	1.21.0-r1	libunbound	1.21.0-r1
unbound-checkconf	1.21.0-r1	luci-app-unbound	25.250.61039~923f8d9
unbound-control	1.21.0-r1	asterisk-res-resolver-unbound	20.8.1-r1
unbound-control-setup	1.21.0-r1	freeradius3-mod-unbound	3.2.5-r3
unbound-daemon	1.21.0-r1	unbound-host	1.21.0-r1

Services -> Recursive DNS -> Basic

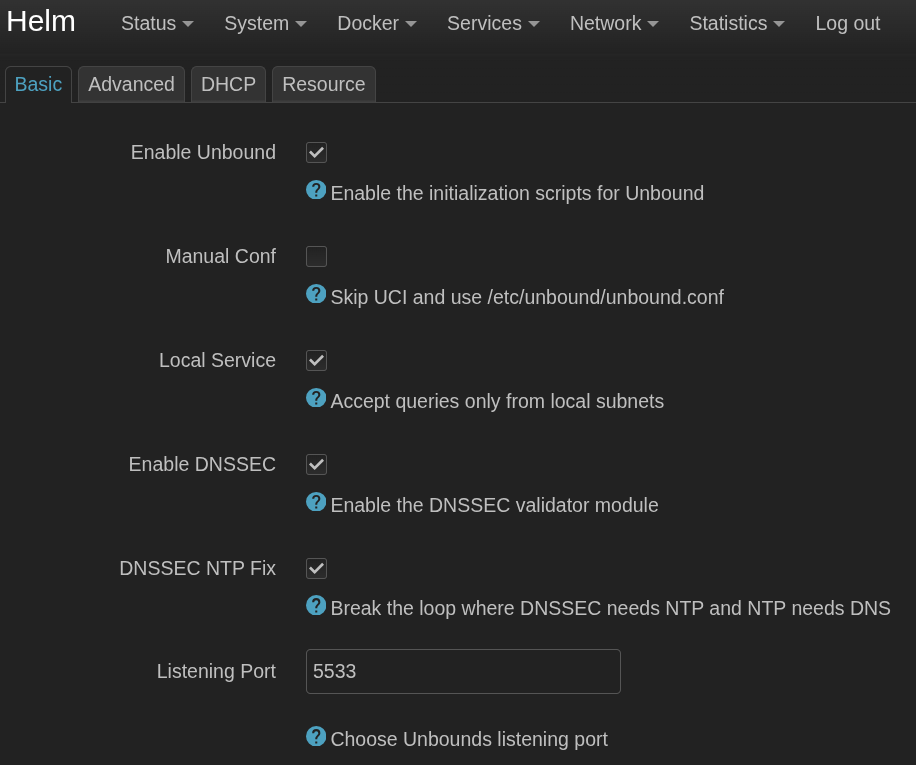

Configure Unbound (Services → Recursive DNS)

1. Navigate to Services → Recursive DNS (or Services → Unbound DNS).

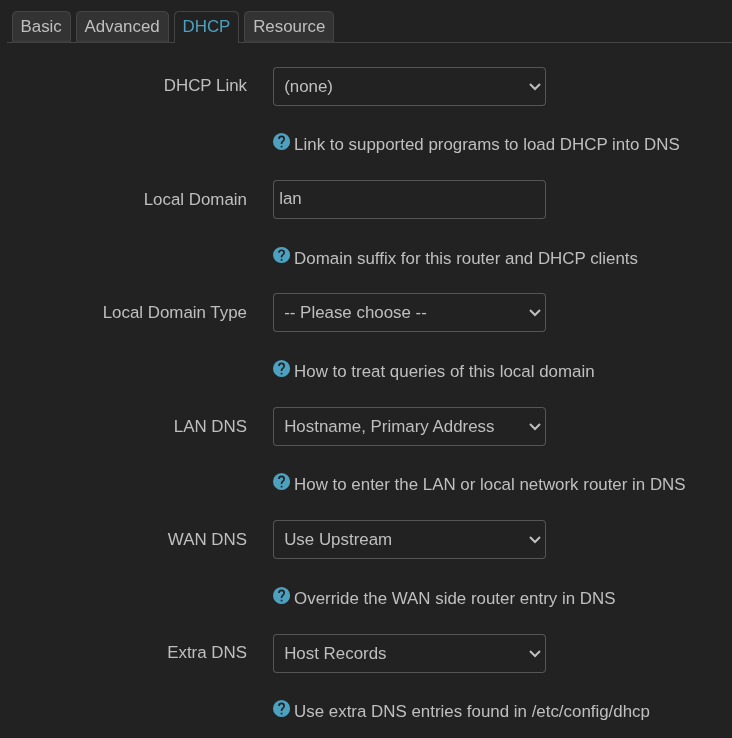

2. Click on the Basic Settings tab:
   • Enabled: Check [x]
   • Listen Port: Set to 5533
   • DHCP Link: Select dnsmasq
   • Local Domain Type: Static (local only)
   • LAN DNS: Hostname, Primary Address
   • WAN DNS: Use Upstream
   • Extra DNS: Host Records
3. Click Save & Apply at the bottom right.

Route Dnsmasq to Unbound (Network → DHCP and DNS)

1. Navigate to Network → DHCP and DNS.
2. General Settings tab:

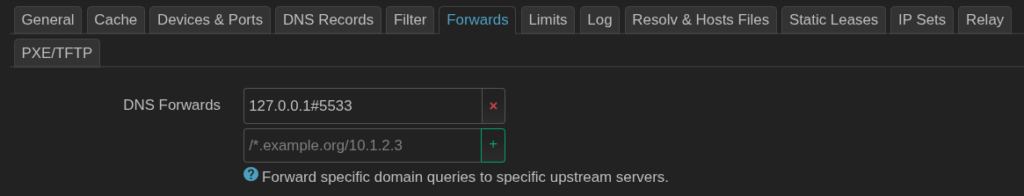

   • DNS Forwardings: Add 127.0.0.1#5533 (click the + button to save it).
3. Advanced Settings tab:

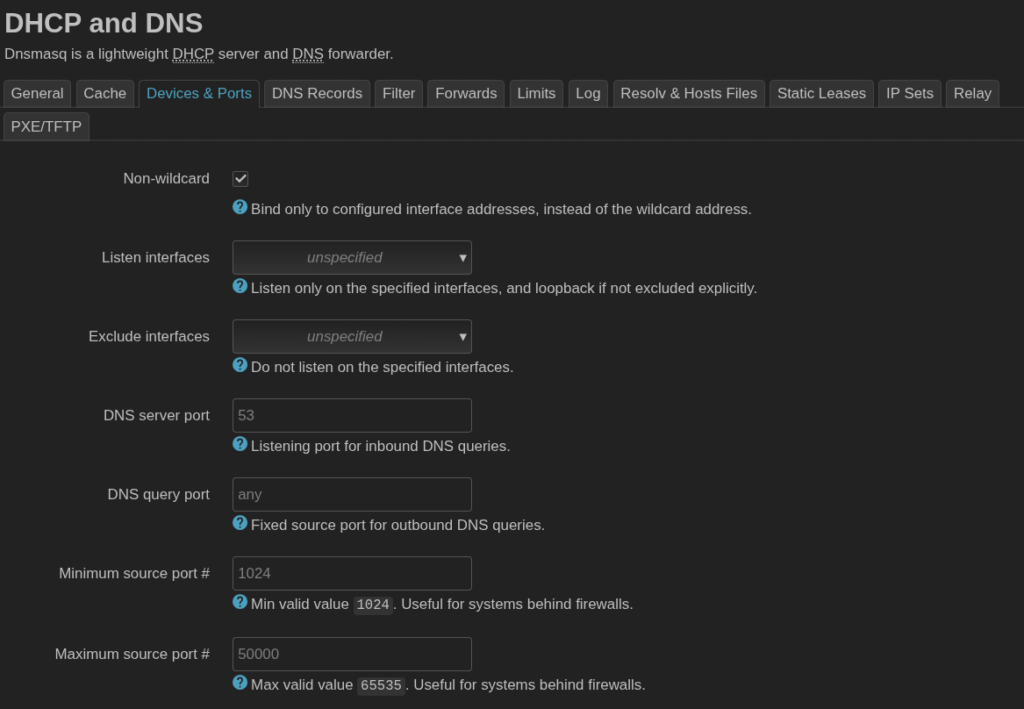

   • DNS server port: Ensure this is set to 53 (or left blank, which defaults to 53).

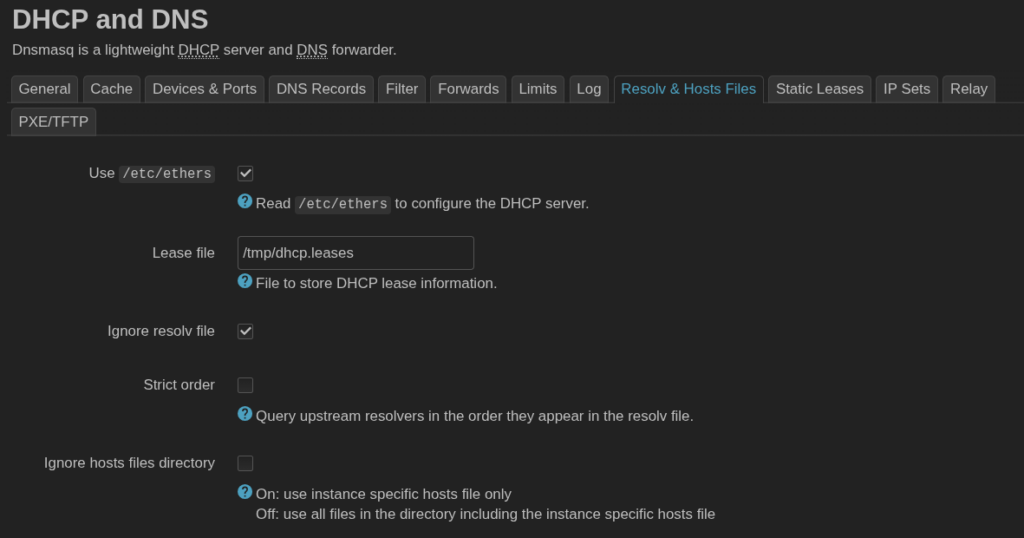

   • Ignore resolve file: Check [x] (This prevents Dnsmasq from using WAN/ISP DNS servers).
4. Click Save & Apply.

Prevent ISP DNS Leaks (Network → Interfaces)

1. Navigate to Network → Interfaces.
2. Click Edit next to your WAN interface.
3. Select the Advanced Settings tab inside the interface editor.
4. Use DNS servers advertised by peer: Uncheck [ ].
5. Ensure the Custom DNS servers field is completely empty.
6. Click Save, then click Save & Apply.
7. (Repeat Step 3 for the WAN6 interface if enabled).

---
